What is sapphire?
Synthetic Sapphire is a single crystal form of corundum, Al2O3, also known as alpha-alumina, and single crystal Al2O3,have 9.0 hardness.
Sapphire is aluminium oxide in the purest form with no porosity or grain boundaries, making it theoretically dense.
The combination of favourable chemical, electrical, mechanical,optical, surface, thermal, and durability properties make sapphire a preferred material for high performance system and component designs. For various semiconductor applications,
sapphire is the best choice in comparison with other synthetic single-crystals.
| Product name | industrial sapphire wafer |
| sapphire optical lens chemical formula | AL2O3 |

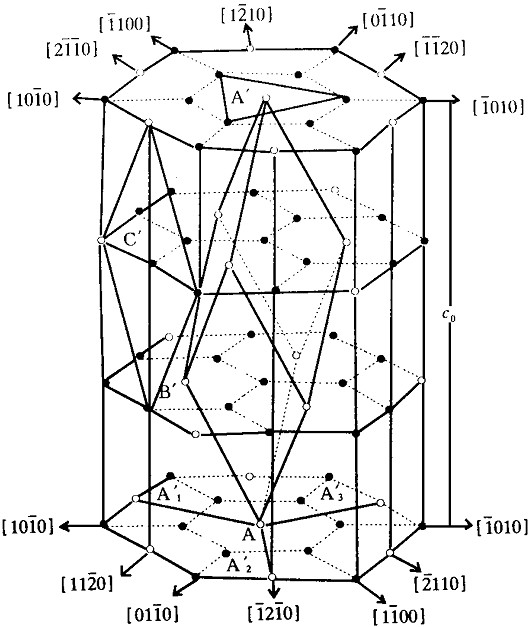

| Crystal structure | Hexagonal |
| Hardness Mohs | 9H |
| Compressvise strength | Gpa 2.0 |
| Density(20℃) | 3.98g/cm |
| Fusion point | 2040℃ |
| Boiling point | 2980℃ |
| Coefficient of Thermal Expansion | α=5.8×10 -6 /K |
| Specific heat | 0.418W.s/g/k |
| Thermal conduction | 25.12W/m/k(@100°C) |
| Optical transmission range | 0.17-5.5μm |
| Transmission(0.3~5um) | 85-88% |
| Refractive index | no=1.768nd |
| ne=1.76nd |
| dn/dt | 13×10-6/K(@633nm) |
| Permittivity | 11.5(//c), 9.3(⊥c) |
How about advantage of sapphire glass?
1-Thinner and Stronger than Standard Glass Windows
2-Transmits Wavelengths Ranging From UV to Mid-Infrared
3-Features Extreme Surface Hardness and Chemical Resistance
-------------------------------------------------------------------------------------------------------------------
What applications arethese products for ?
LED OPtical element applications mobile camera cover glass
mechanical parts watch and other consumer electronics military applications
Fingerprint recognition allication SOS substrates Artificial jewelry

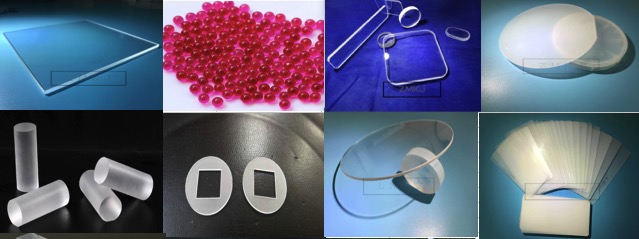

Sapphire parts products in detail
4.We also can supply professional customized service in time and provide
cooperation and support of new product development and technology appliance
in other semiconductor crystal material products
Product Tags:
|
|

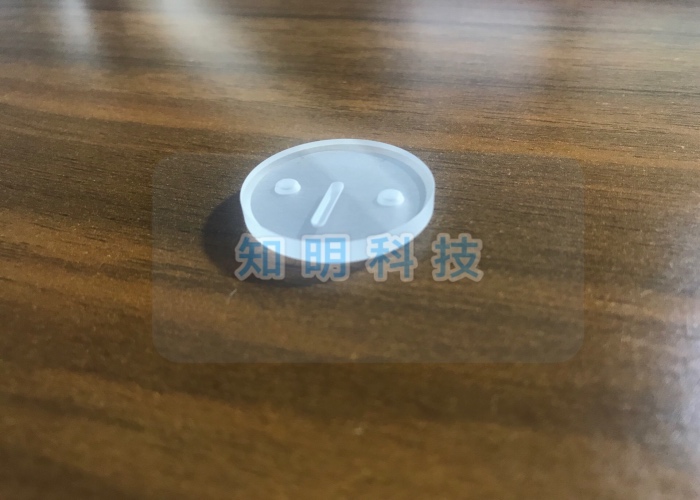

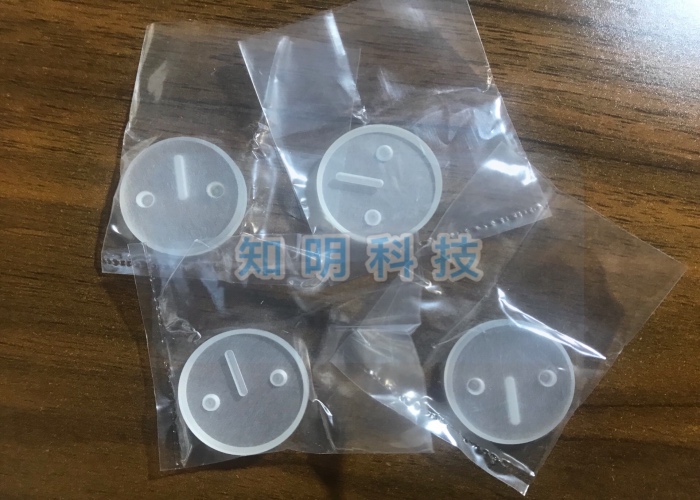

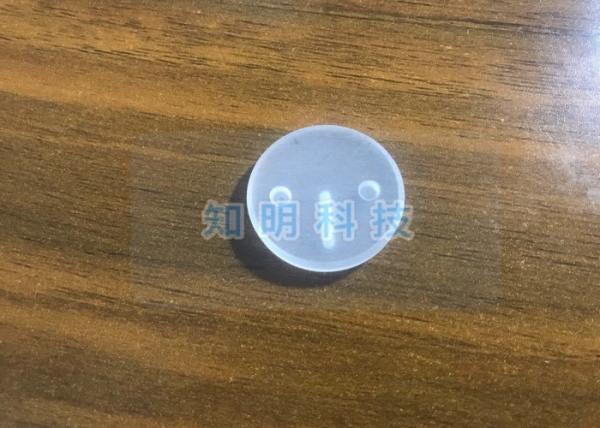

High Temperature Resistance Sapphire Components Blind Pit Sapphire Bearing Parts With Hole Images
|
